Broilmaster B-Series Deluxe 40-Inch Built-In Stainless Steel Gas Grill
Choose options








5-Burner Precision Grilling with Rear Infrared Burner
The Broilmaster B-Series Deluxe 40-Inch Built-In Grill is a masterpiece of American engineering, designed for those who demand expansive cooking space and professional-grade power. Since 1966, Broilmaster has built a reputation for creating "heirloom quality" grills, and this 5-burner powerhouse is no exception. Constructed from premium 304 stainless steel, it offers a massive 853 square inches of cooking territory, making it the ideal centerpiece for a high-end, custom outdoor kitchen.
Key Features
-
Cast Stainless Steel Burners: Features five commercial-grade cast stainless steel burners delivering a total of 70,000 BTUs. These heavy-duty components provide superior heat retention and longevity compared to standard tube burners.
-

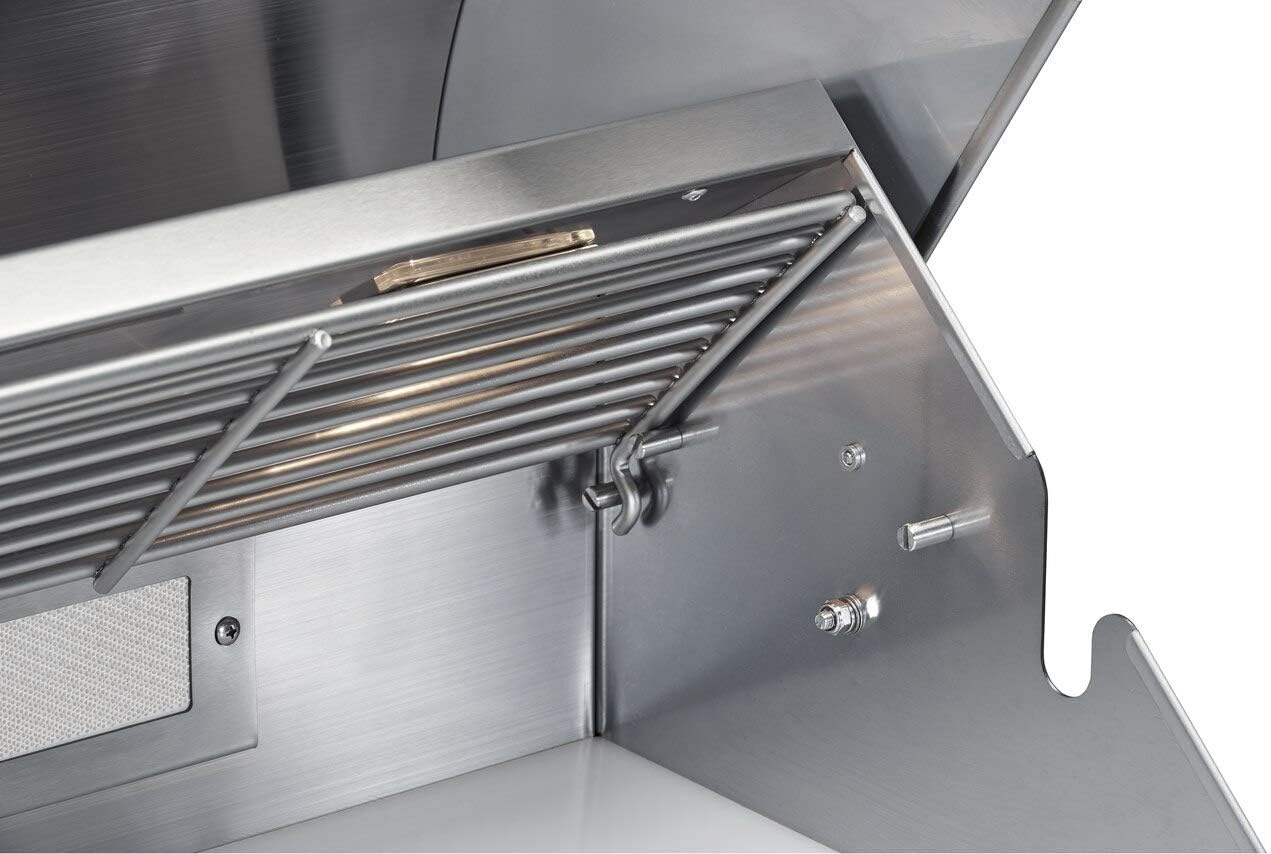

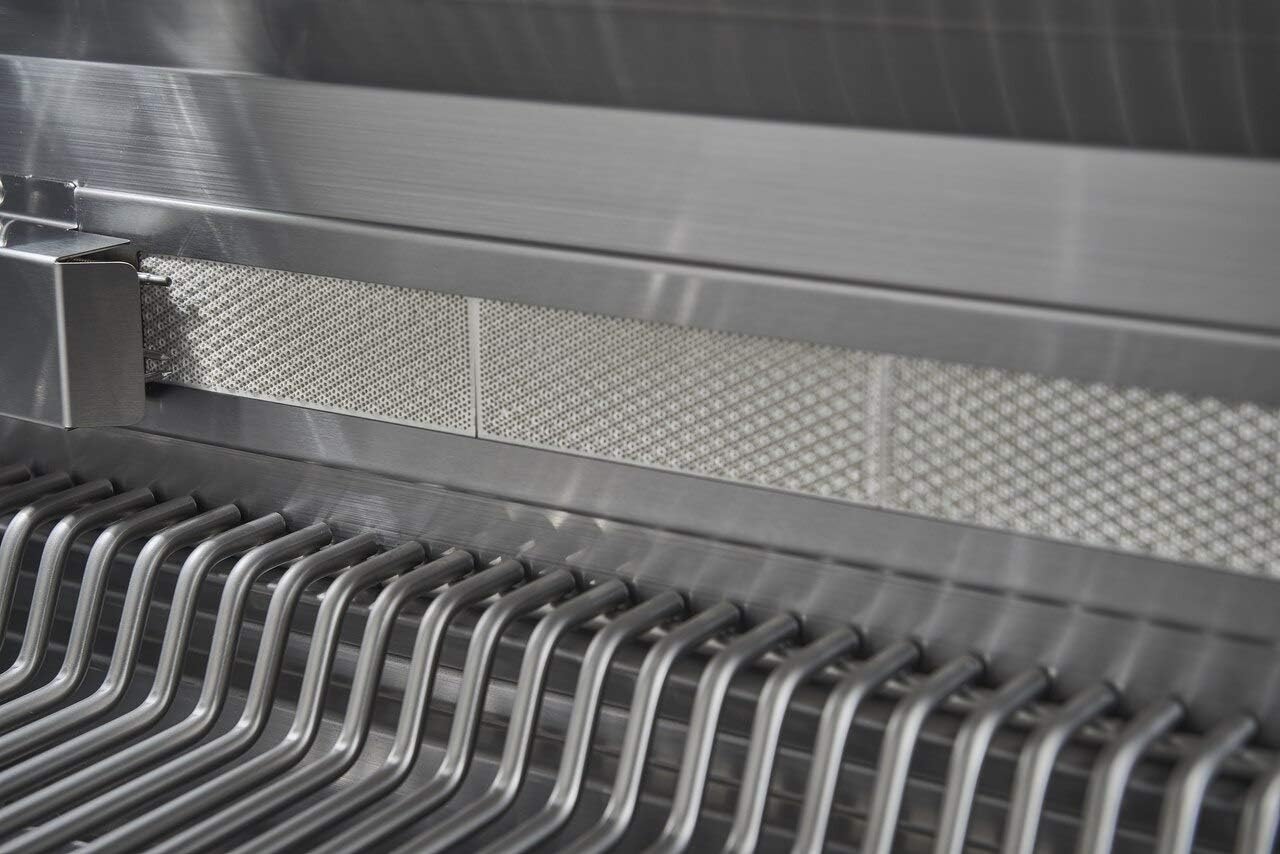

Rear Infrared Rotisserie Burner: A dedicated 15,000 BTU infrared rear burner provides the consistent, intense heat needed for professional slow-roasting and rotisserie cooking (kit available separately).
-
Multi-Zone Heat Dividers: Innovative stainless steel dividers allow you to create distinct temperature zones across the expansive grill surface. Simultaneously sear steaks at high heat while slow-roasting vegetables at a lower temperature.
-

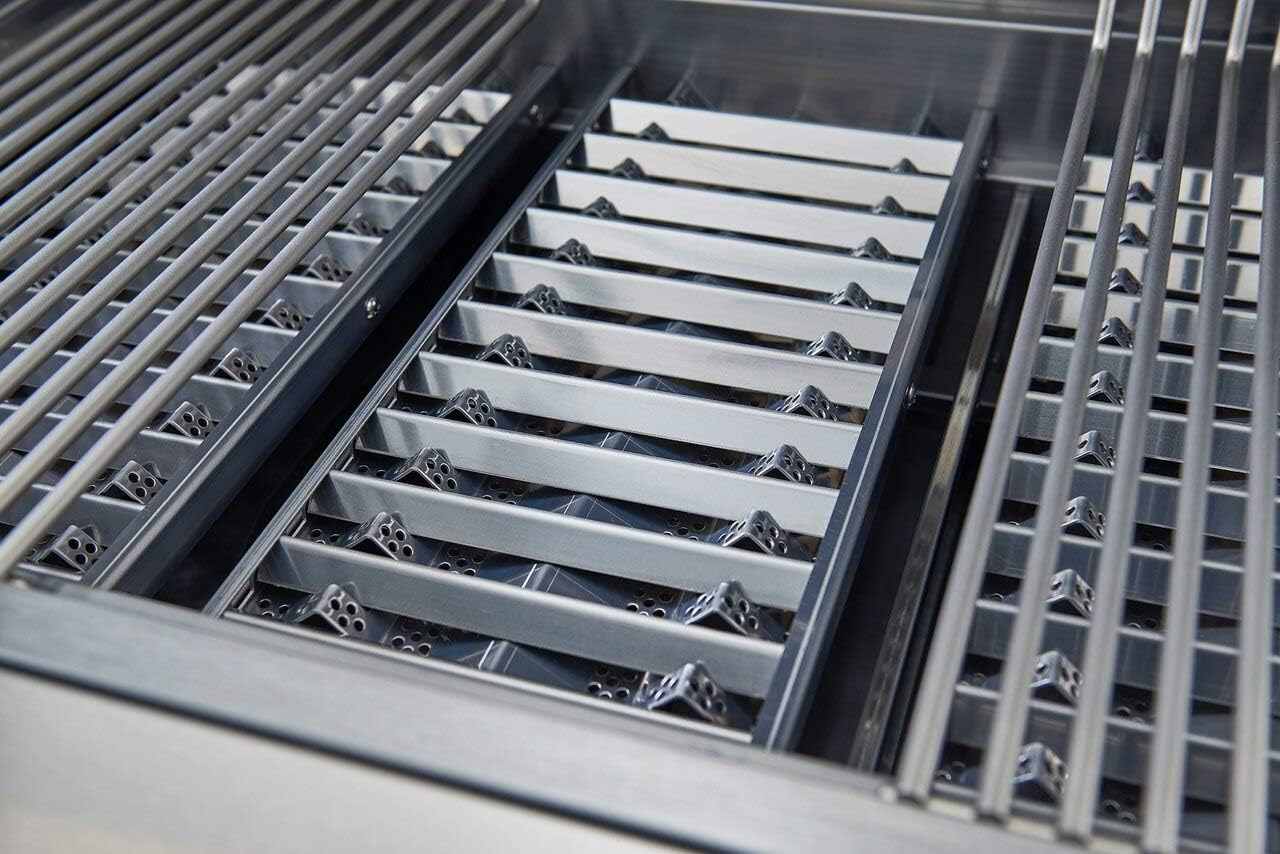

Advanced Flare Control: The vaporizer system is engineered to protect burners from drippings, virtually eliminating flare-ups while transforming juices into aromatic smoke to enhance food flavor.
-

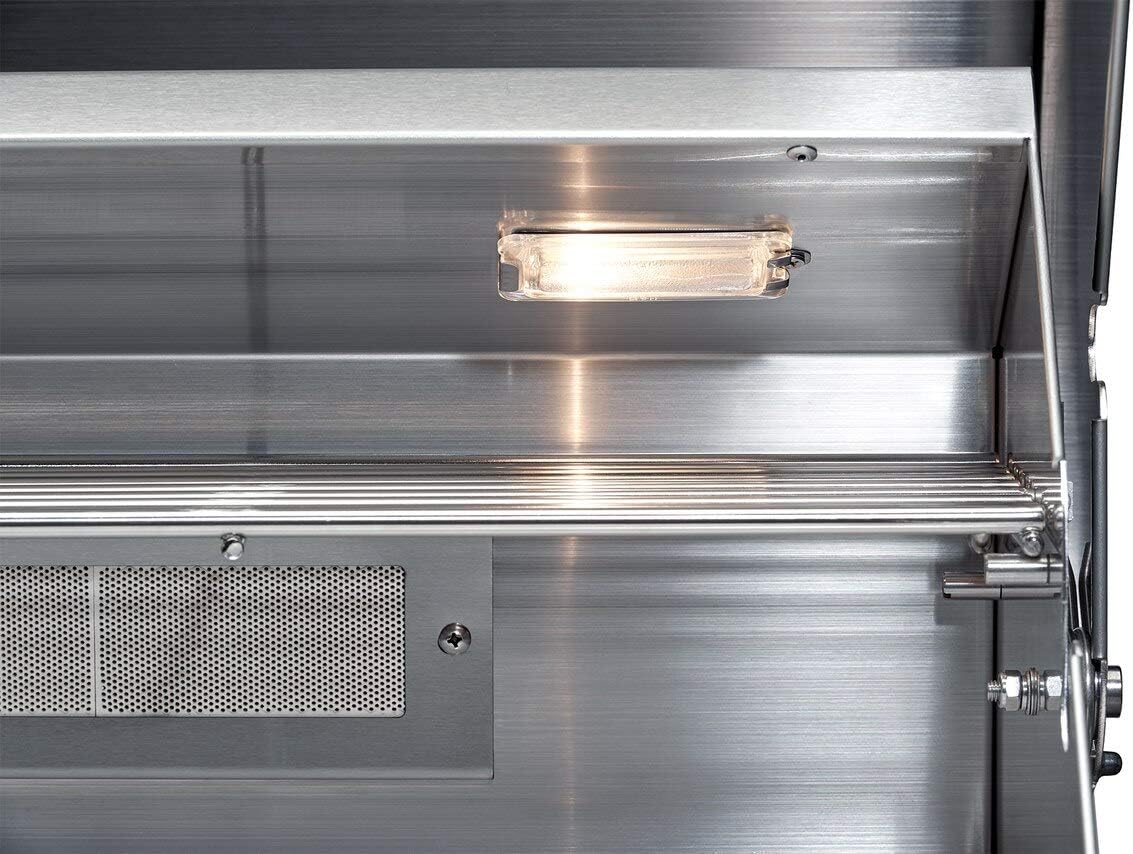

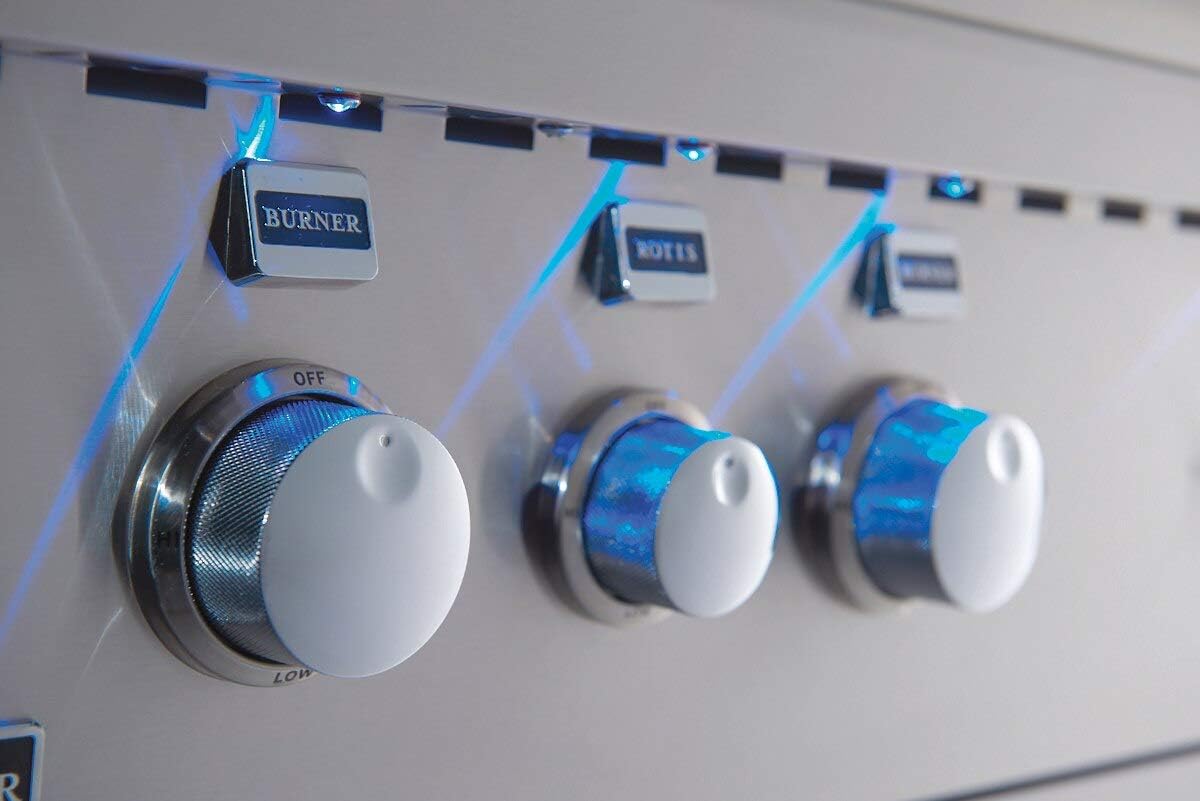

Elite Nighttime Visibility: Integrated interior halogen lights illuminate the entire cooking surface, while LED-illuminated ergonomic knobs provide clear visual confirmation and precise control after dark.
-
Welded Double-Lined Hood: The double-lined lid is expertly welded and polished, maximizing heat retention for oven-like performance and preventing the exterior stainless steel from discoloring.
-
Flame Thrower Ignition: Experience a reliable, battery-free start every time with the dedicated flame thrower ignition system.
-
Made in the USA: Meticulously manufactured with American craftsmanship, ensuring the highest standards of quality and durability for decades of use.
Technical Specifications
| Feature | Details |
| Total Cooking Area | 853 Sq. Inches (648 Main + 205 Secondary) |
| Main Burner Power | 70,000 BTUs (5 x 14,000 BTU Cast Burners) |
| Rotisserie Burner | 15,000 BTU Rear Infrared |
| Ignition Type | Flame Thrower (Battery-Free) |

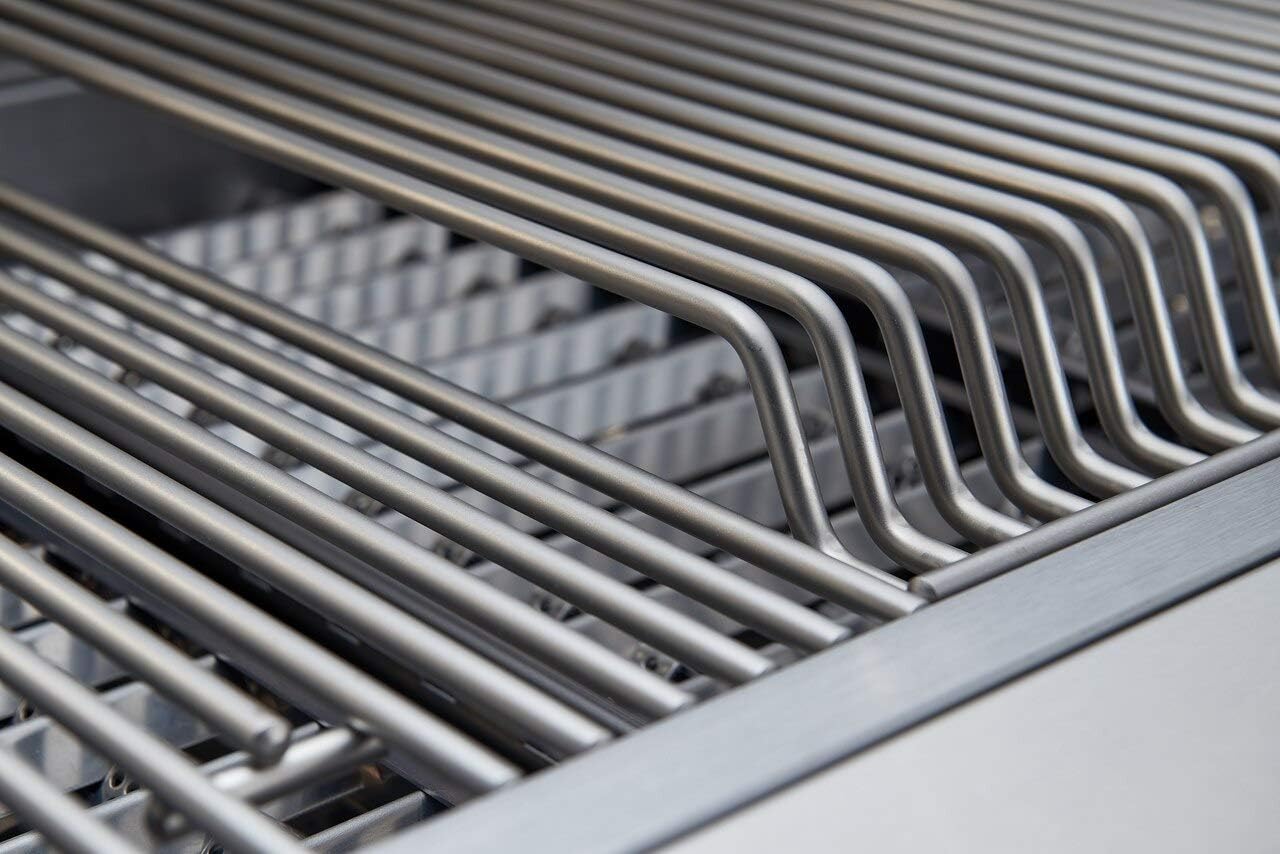

| Cooking Grates | Heavy-Duty Stainless Steel Rods |
| Material | 304 Grade Stainless Steel |
| Configuration | Built-In (For Outdoor Kitchen Islands) |
| Dimensions | 38" W x 20.5" D x 7.94" H |
What’s Included
-
Broilmaster BSB405 40-Inch Built-In Grill Head
-
Integrated Interior & Exterior Lighting System
-
Removable Heat Zone Dividers
-
Stainless Steel Warming Rack
-
Propane Hose and Regulator
-
Note: The rotisserie motor and spit rod are optional upgrades available separately.
